Rohde & Schwarz and VIAVI offer joint test solutions to meet the needs of radio equipment manufacturers who apply for the NTIA Public Wireless Supply Chain Innovation Fund.
Rohde & Schwarz and Viavi Solutions have announced an expansion of their partnership delivering state-of-the-art O-RU testing solutions. These solutions are ideally suited to the needs of radio manufacturers planning to bid for the United States Department of Commerce’s National Telecommunications and Information Administration (NTIA) Public Wireless Supply Chain Innovation Fund (PWSCIF) Second Notice of Funding Opportunity (NOFO 2), which focuses on Open Radio Commercialization and Innovation. Furthermore, having received funding through NOFO1 for their VALOR™ lab, VIAVI has firsthand expertise in successful bidding and execution.
Since the launch of this partnership, Rohde & Schwarz and VIAVI have established a reputation for compact, flexible solutions drawing from the strengths of both companies while delivering a seamless user experience.
The two companies offer:
O-RU Conformance Test

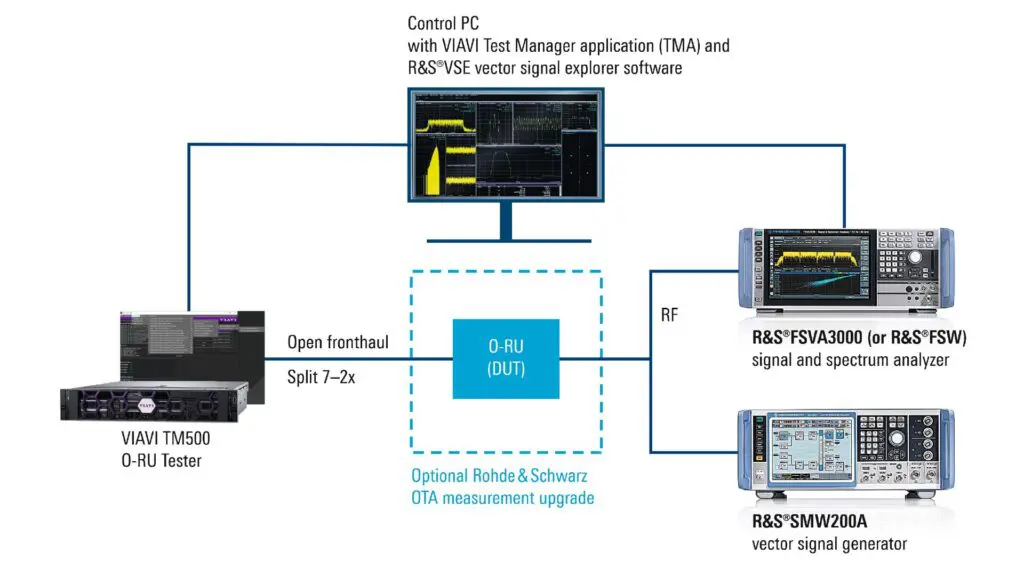

Fronthaul conformance tests, defined by the O-RAN ALLIANCE, ensure that O-RUs are interoperable with the O-RAN distributed unit (O-DU). The joint test solution includes:
- The R&S SMW200A vector signal generator, R&S FSVA3000 signal and spectrum analyzer and the R&S VSE signal analysis software from Rohde & Schwarz, to emulate a real-world radio environment by generating, capturing and analyzing RF signals, extended for O-RAN applications.
- The TM500 O-RU Tester from VIAVI, implementing the O-RAN Distributed Unit (O-DU) side of the M-plane and C/U-plane functionality necessary to configure the interface with the O-RU and exchange of I/Q data over the Open Fronthaul.
- The O-RU Test Manager application, providing a single point of control for the integrated system, simplifying testcase workflow while allowing deeper data inspection and analysis as needed.
The same set-up can be also used for performing conformance cases defined by 3GPP TS 38.141/36.141 for 5G/LTE base stations (BS).
Test Scalability
As O-RAN radios move to commercial deployment, development testing needs to move beyond lab validation of conformance to greater use case and functionality testing within R&D. These newer use cases prioritize simplicity, speed and cost effectiveness in testing. The R&S PVT360A is a compact, single-box vector signal analyzer (VSA) and vector signal generator (VSG) that combines with the VIAVI TM500 O-RU Tester and VIAVI O-RU Test Manager Application for a more scalable solution, providing a cost-optimized and simpler setup that is well-suited for R&D teams that require multiple test lines to accelerate time to market. The TM500 O-RU Tester can also be scaled to provide direct performance testing such as uplink and downlink data performance and capacity testing.
Network Energy Saving
O-RAN radio units (O-RU) consume the majority of power in 5G radio access networks. Network equipment manufacturers and service providers are prioritizing O-RU energy efficiency without sacrificing performance. Rohde & Schwarz and VIAVI have developed a fully automated testbed to verify O-RU energy efficiency, including the R&S RTO6 oscilloscope, R&S NGP800 power supply and the VIAVI TM500 O-RU Tester. The TM500 O-RU Tester emulates the DU, synchronizes and configures the O-RU and offers several test scripts to verify O-RU energy efficiency under different load conditions. The R&S equipment can then monitor dynamic device activities versus power consumption: The oscilloscope monitors energy dynamics under various traffic conditions by tracking power changes over time, while the power supply – besides powering the O-RU – also provides high measurement resolution and accuracy over a long period of time. The O-RU Test Manager Application ensures a seamless user experience across the testbed.
VIAVI also provides their vendor and MNO partners with access to VALOR, the Automated Lab-as-a-Service for Open RAN. VALOR reduces costs through unique cross-referencing and offers additional resources for interoperability, validation, and testing.
Alexander Pabst, Vice President Market Segment Wireless Communications at Rohde & Schwarz, said: “Our joint O-RU conformance test solution has been used to test a wide range of different O-RUs at global plugfests of the O-RAN ALLIANCE over the last years. It has a solid presence at Open Testing and Integration Center (OTIC) labs worldwide and was instrumental in initial O-RU certifications in Asia and most recently also in the first certification in Europe. With this long track record, we are now set to serve the efforts of the NTIA to bring forward Open Radio technology. This is putting the successful collaboration between Rohde & Schwarz and VIAVI to the next level.”
Ian Langley, Senior Vice President and General Manager, Wireless Business Unit, VIAVI, said: “Rohde & Schwarz and VIAVI are proud to support the NTIA Open RAN Innovation and Commercialization based on our best-of-breed approach with a unified customer experience. Since we first began offering O-RU conformance testing, open radios have advanced significantly, and test requirements – from scalability for use across the development cycle, to energy saving, have become critical. We are pleased to expand our partnership into these new areas.”
