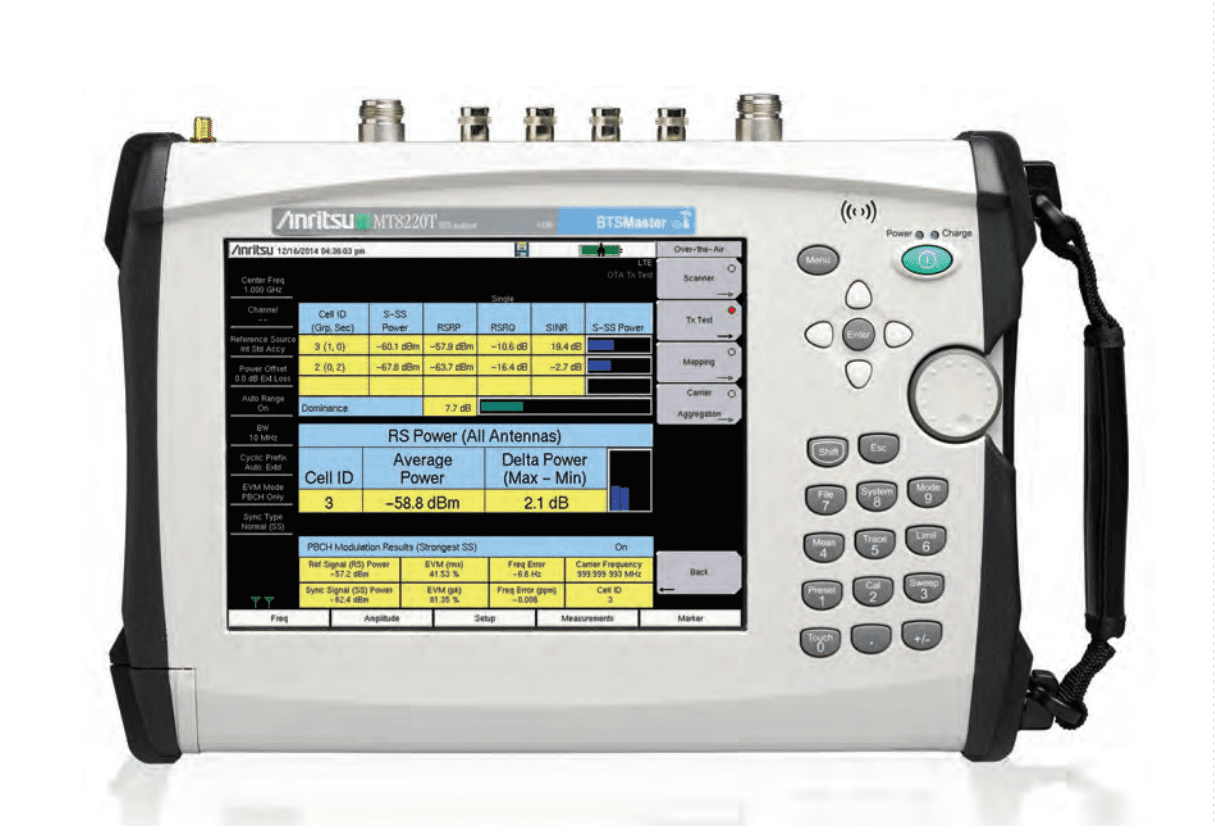

The BTS Master MT8220T is Anritsu’s third generation high performance handheld base station analyzer that has been specifically developed to advance the support for 4G wireless networks as well as installed 2G, 3G and WiMAX networks. The MT8220T includes:
- 20 MHz bandwidth modulation quality testing
- Vector Signal Generator (400 MHz to 6 GHz) for comprehensive DAS and receiver testing
- Convenient touch screen GUI
- Sweep modes for reliable interference hunting and analysis
The BTS Master features over 30 analyzers in one to meet virtually every measurement need. Standard features are:
- 2-port Cable and Antenna Analyzer: 400 MHz to 6 GHz
- Spectrum Analyzer: 150 kHz to 7.1 GHz • Power Meter: 10 MHz to 7.1 GHz
- GPS receiver with antenna
- 3-year warranty
A user can select from many options including:
- High Accuracy Power Meter
- Interference Analyzer
- Channel Scanner
- 3GPP Wireless Measurements LTE/LTE-A FDD/TDD, GSM/GPRS/EDGE, W-CDMA/HSPA+, TD-SCDMA/HSPA+
- 3GPP2 Wireless Measurements CDMA, EV-DO
- IEEE 802.16 Wireless Measurements Fixed WiMAX, Mobile WiMAX
- CPRI RF Measurements
- BBU Emulation
The wireless measurements have three methods for verifying the performance of a base station transmitter by measuring:
- RF Quality
- Modulation Quality
- Downlink Coverage Quality
